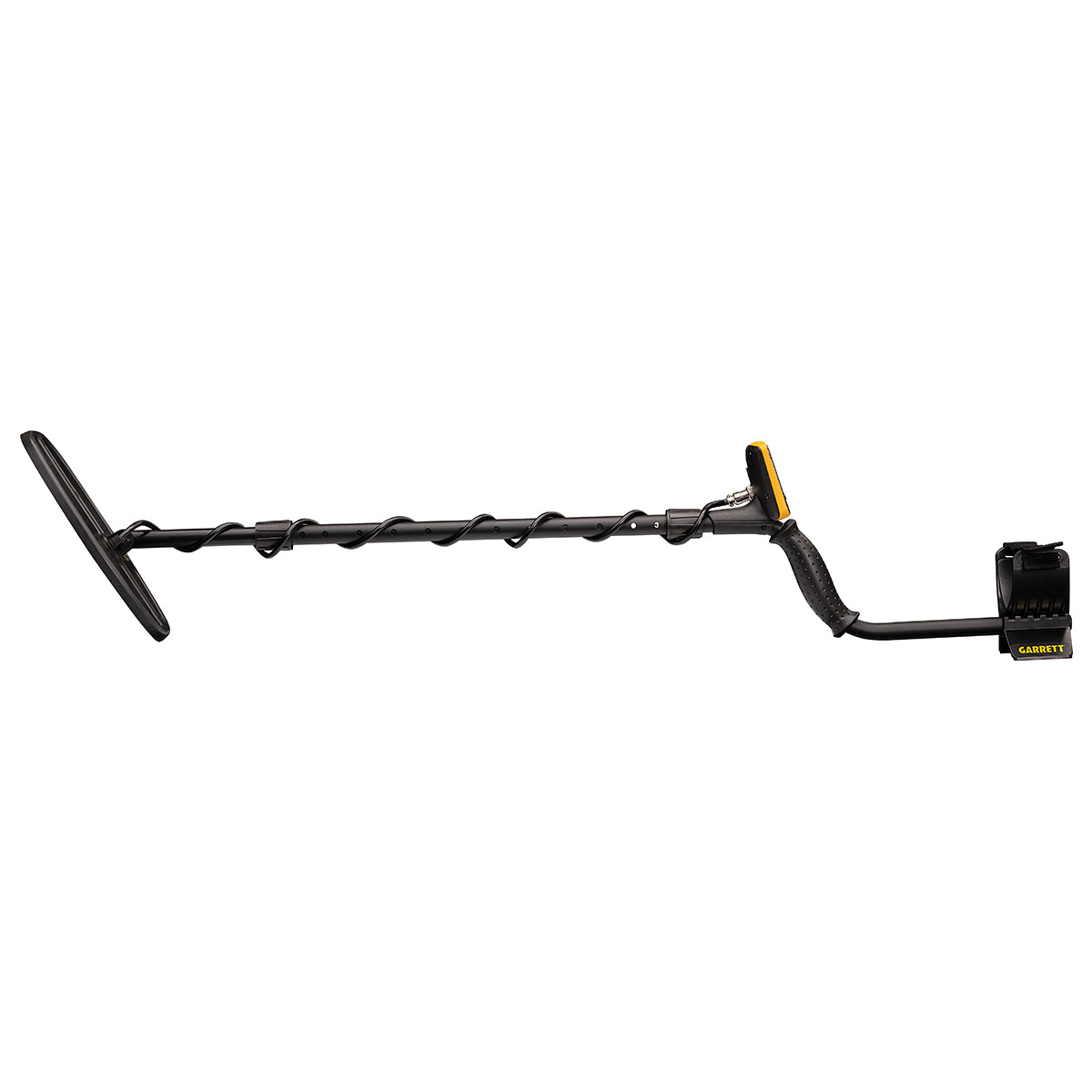

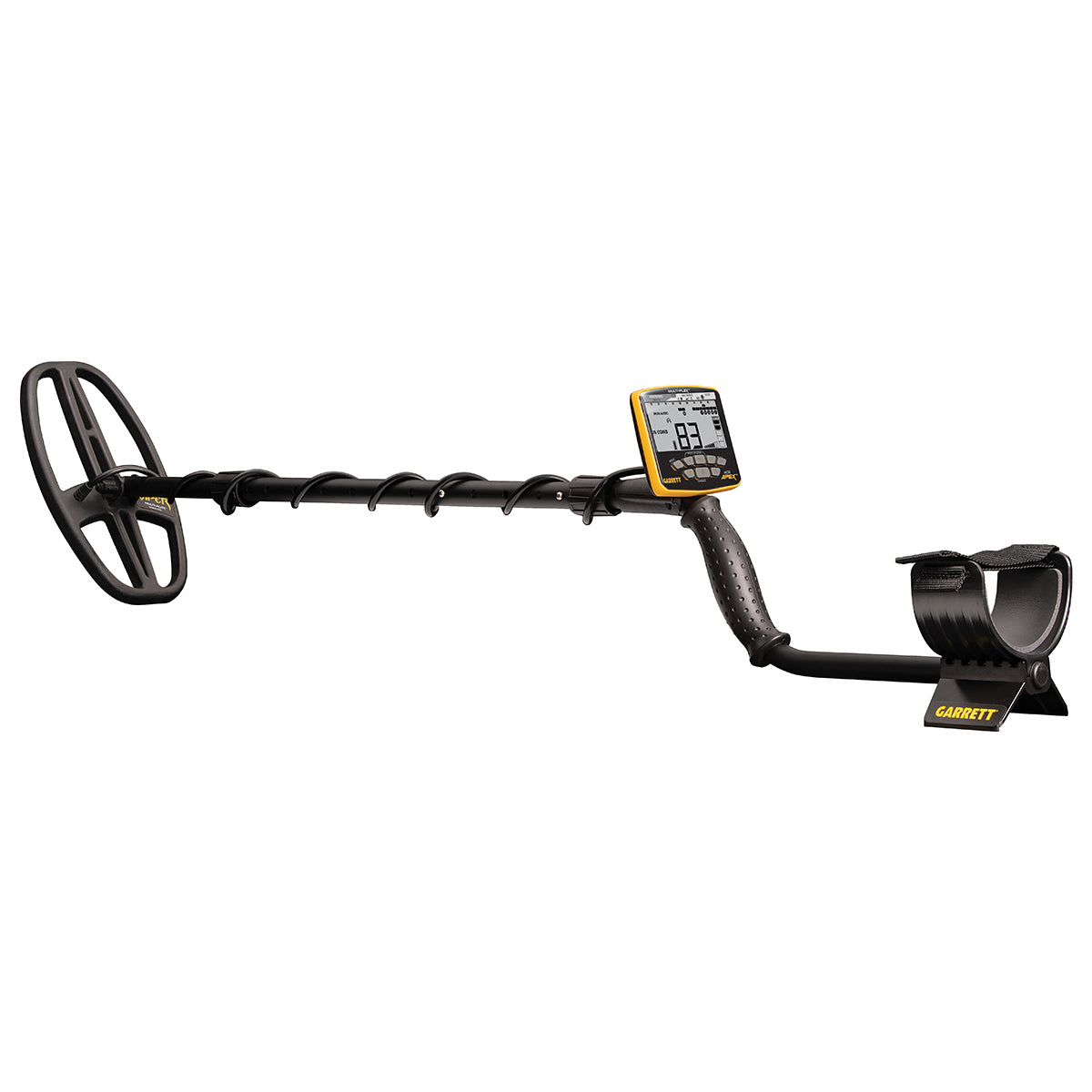

Garrett ACE APEX 6"x11" coil Wireless Package
Garrett ACE APEX 6"x11" coil Wireless Package

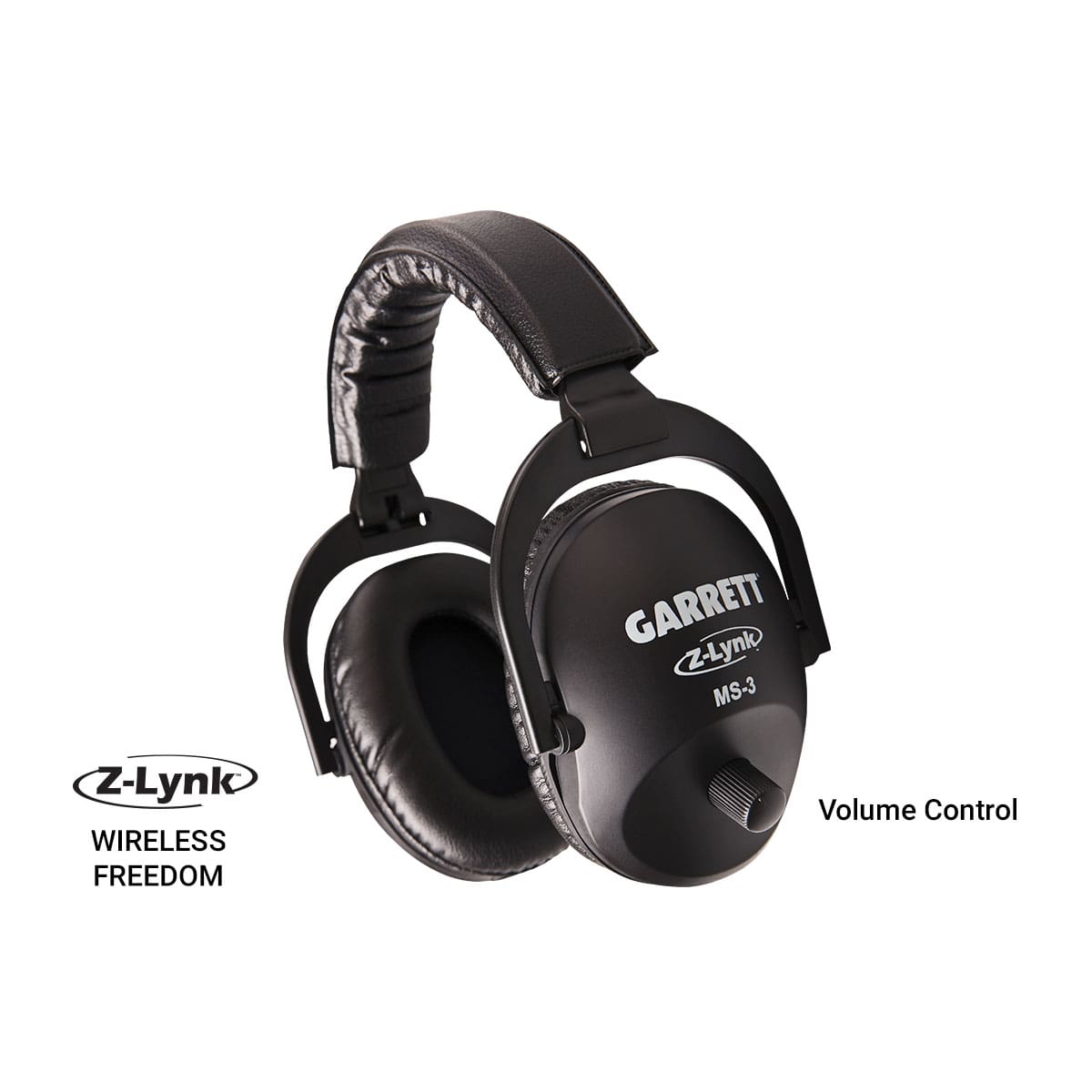

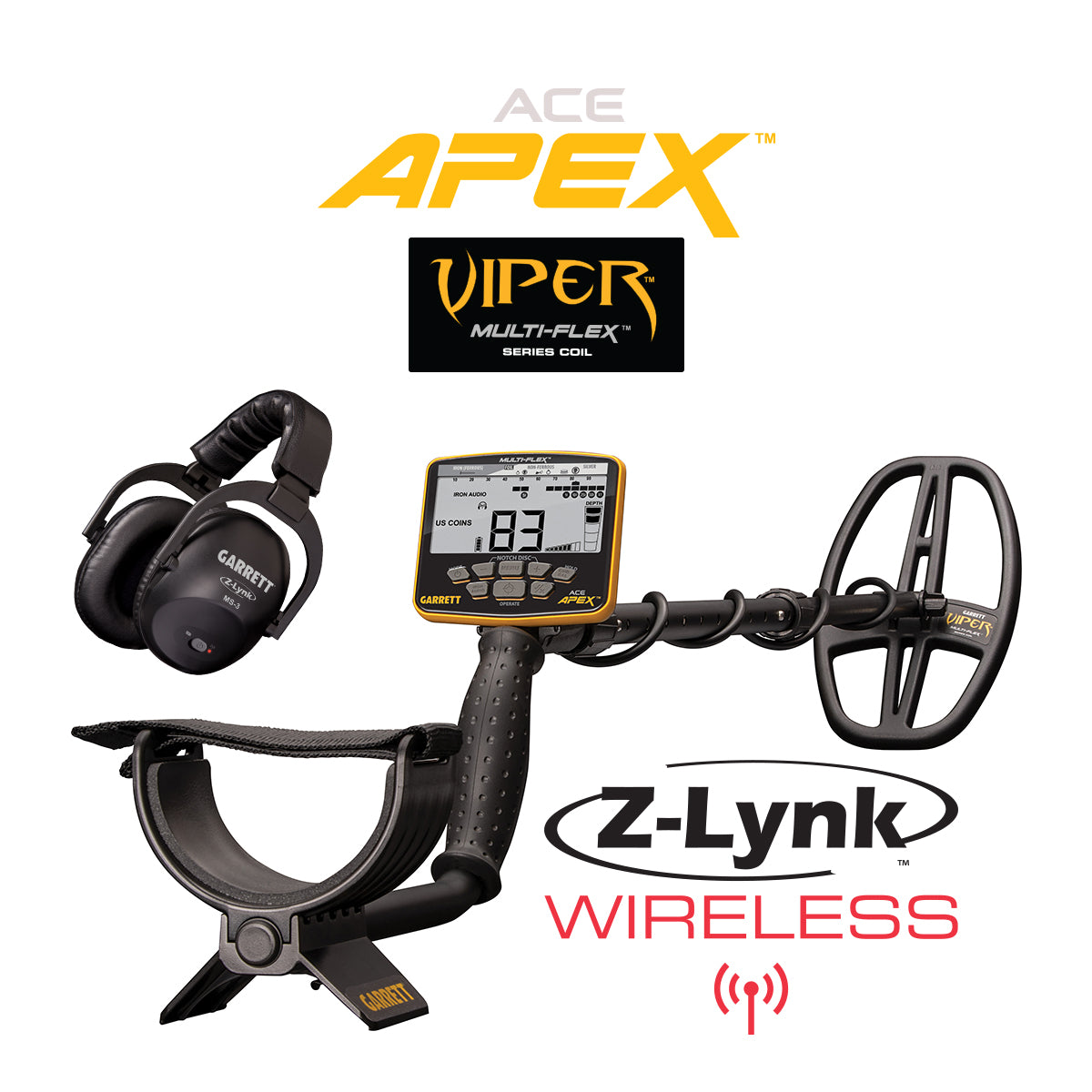

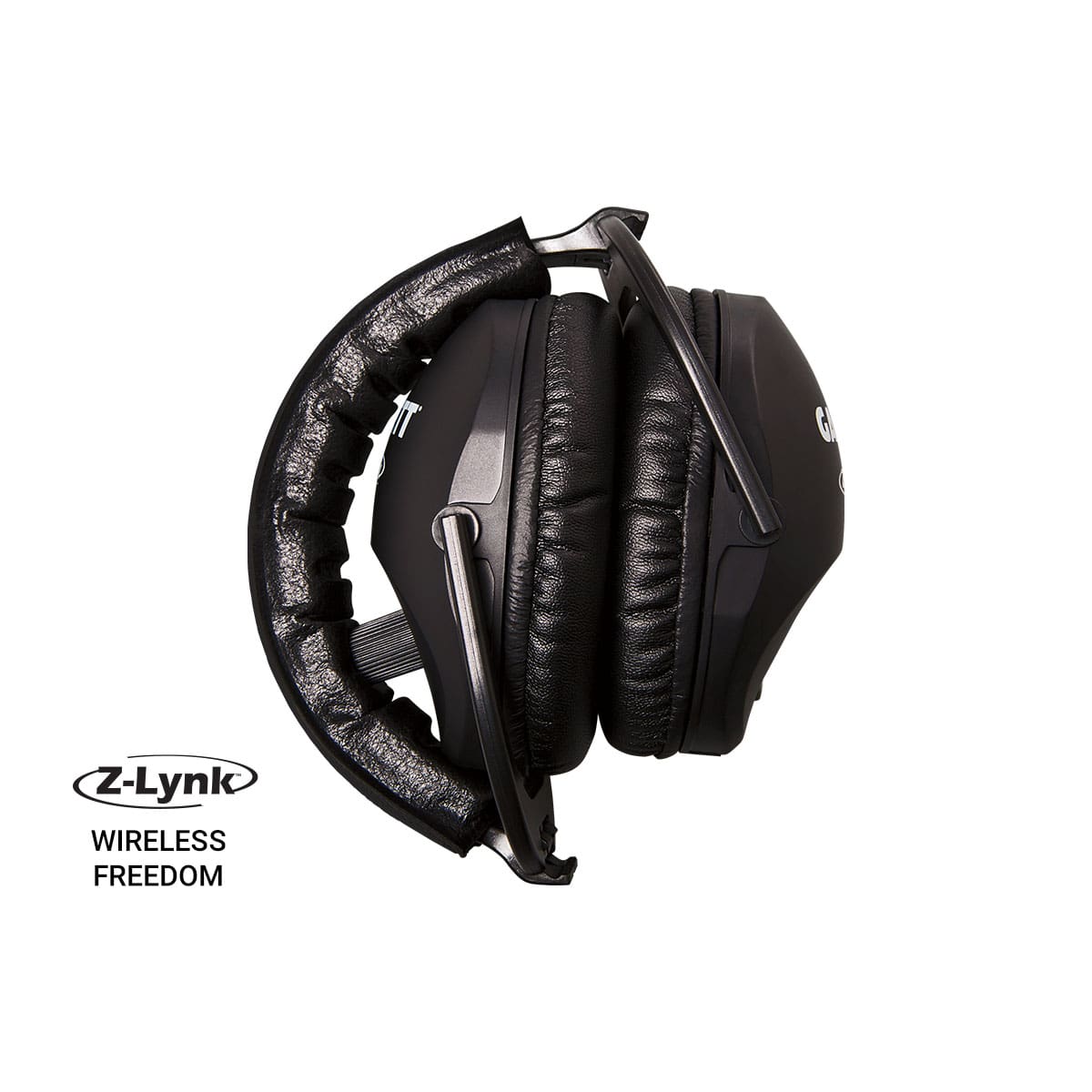

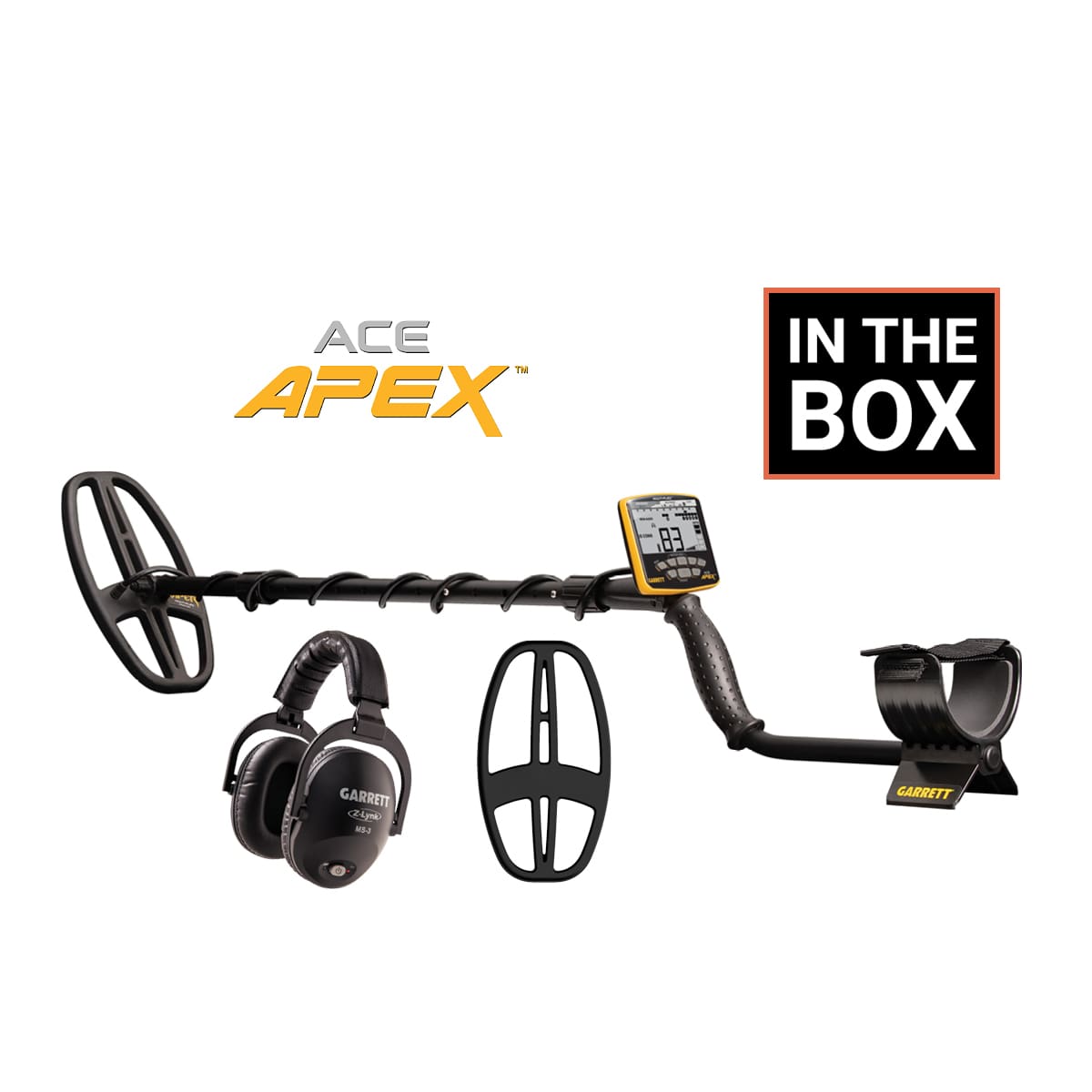

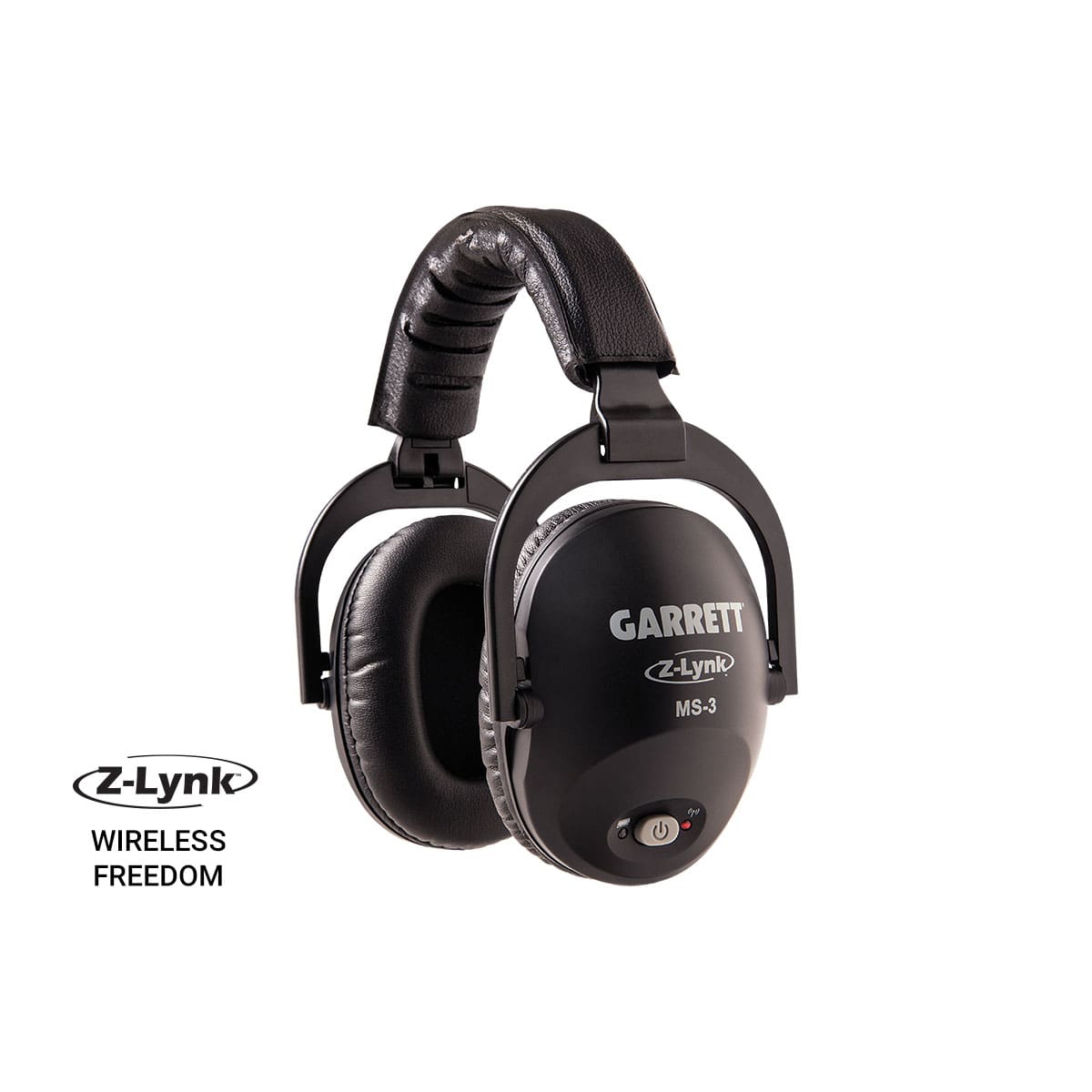

THE NEW ACE APEX Wireless Package includes 6"x11" DD VIPER coil*, coil cover & MS-3 Wireless headphones.
THE PINNACLE OF MULTI-FREQUENCY DETECTION FLEXIBILITY
- Excellent detection depth on a wide variety of targets.
- Fast target recovery speed
- Highly versatile Multi-Flex Multi-Frequency technology
COMPLETE FLEXIBILITY
Garrett’s Multi-Flex technology, fueled by a cutting edge, broad-bandwidth digital platform, simply gives you more versatility with the Apex than can be found on any detector in its price range!
Choose from powerful single frequencies to enhance detection on specific targets*, or select one of Apex’s simultaneous multifrequency modes to achieve excellent detection on all targets in all soils.
IRON VOLUME: CONTROL WHAT YOU HEAR
IRON VOLUME allows user to decrease the volume of iron targets, while the volume of non-ferrous targets remains at normal level. Experienced treasure hunters often like hearing all targets, but will appreciate the option to decrease volume of undesired items.
With eight Iron Volume adjustments, Apex offers more flexibility than any other detectors in its price range.
SIMPLICITY... WITH FULL CONTROL

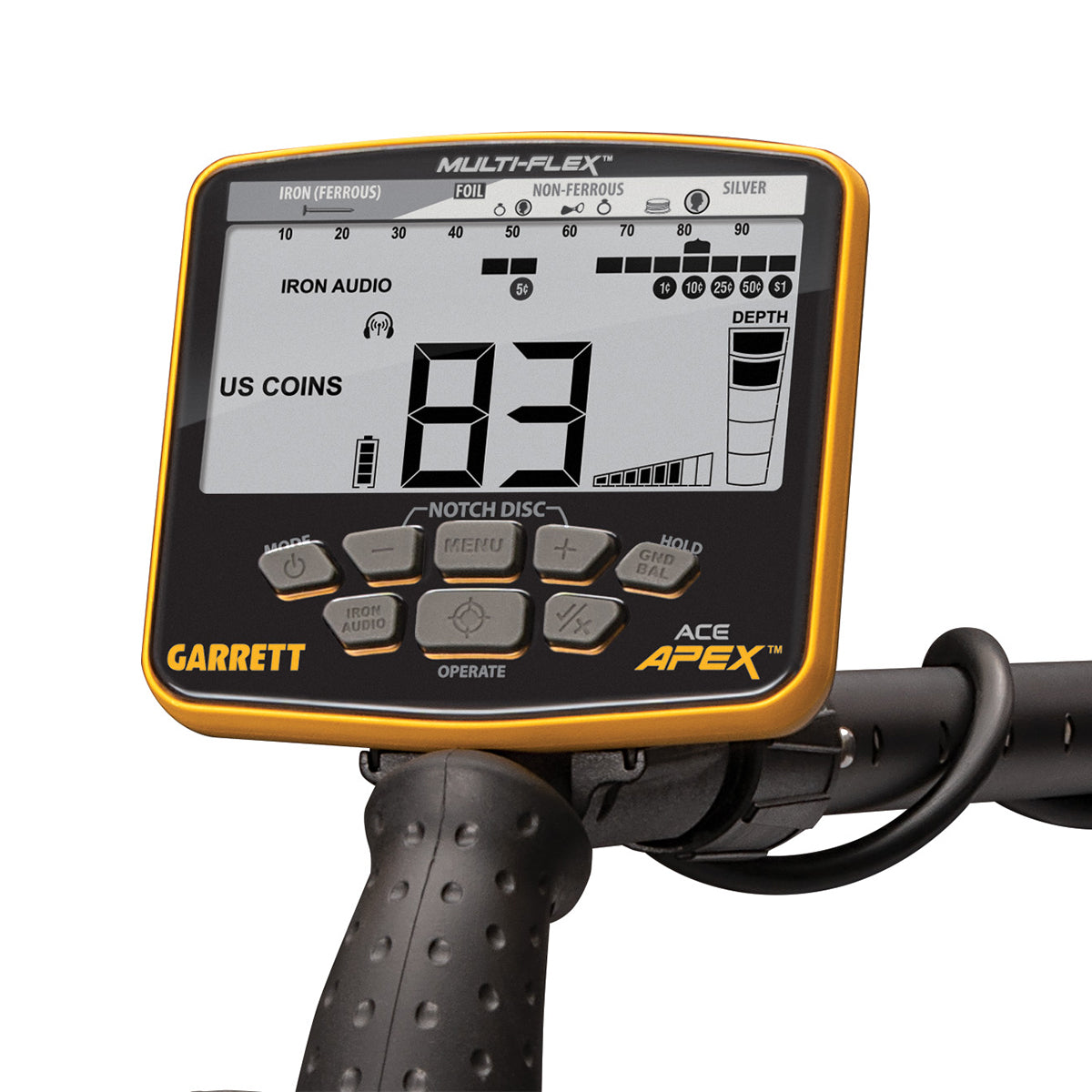

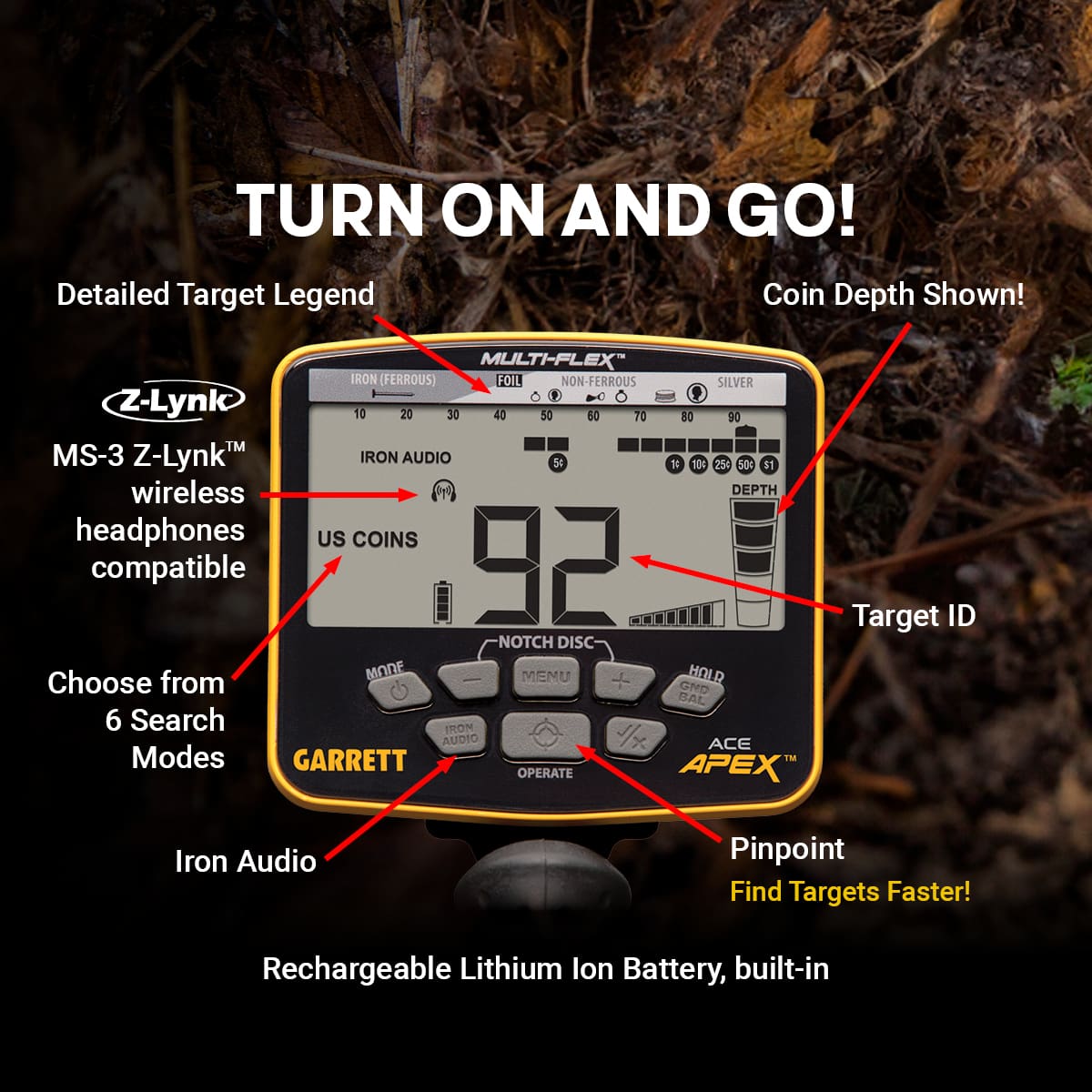

INTUITIVE AND EFFICIENT CONTROLS
Direct drive buttons for most frequently used controls. Easy-access menu adjustments for other controls.
SIX DETECTION MODES + PINPOINT
Zero, Coins, US Coins (with coin icons), Jewelry, Relics, and Custom
HI-RESOLUTION GROUND BALANCE
175 points of ground balance resolution (like the Garrett AT Max), ranging from ferrous ground to saltwater.
LARGE TARGET ID NUMBERS
RECHARGEABLE BATTERY
Built-in rechargeable lithium ion battery provides up to approximately 15 hours of use, depending on setting. Micro-USB charging cable included.
IRON AUDIO
Garrett’s unique feature helps to correctly identify complex iron objects, such as bottle caps.
5-TONE AUDIBLE TARGET ID
Five distinct tones provide greater audible target identification than on Garrett detectors.
HYBRID AUDIO SYSTEM
The Apex target audio provides the simplicity of binary audio (found on existing ACE detectors) with the additional benefits of subtle proportional audio for faint targets.
HI-RESOLUTION DISCRIMINATION
Twenty pixels of Notch Discrimination, including 8 pixels of Iron.

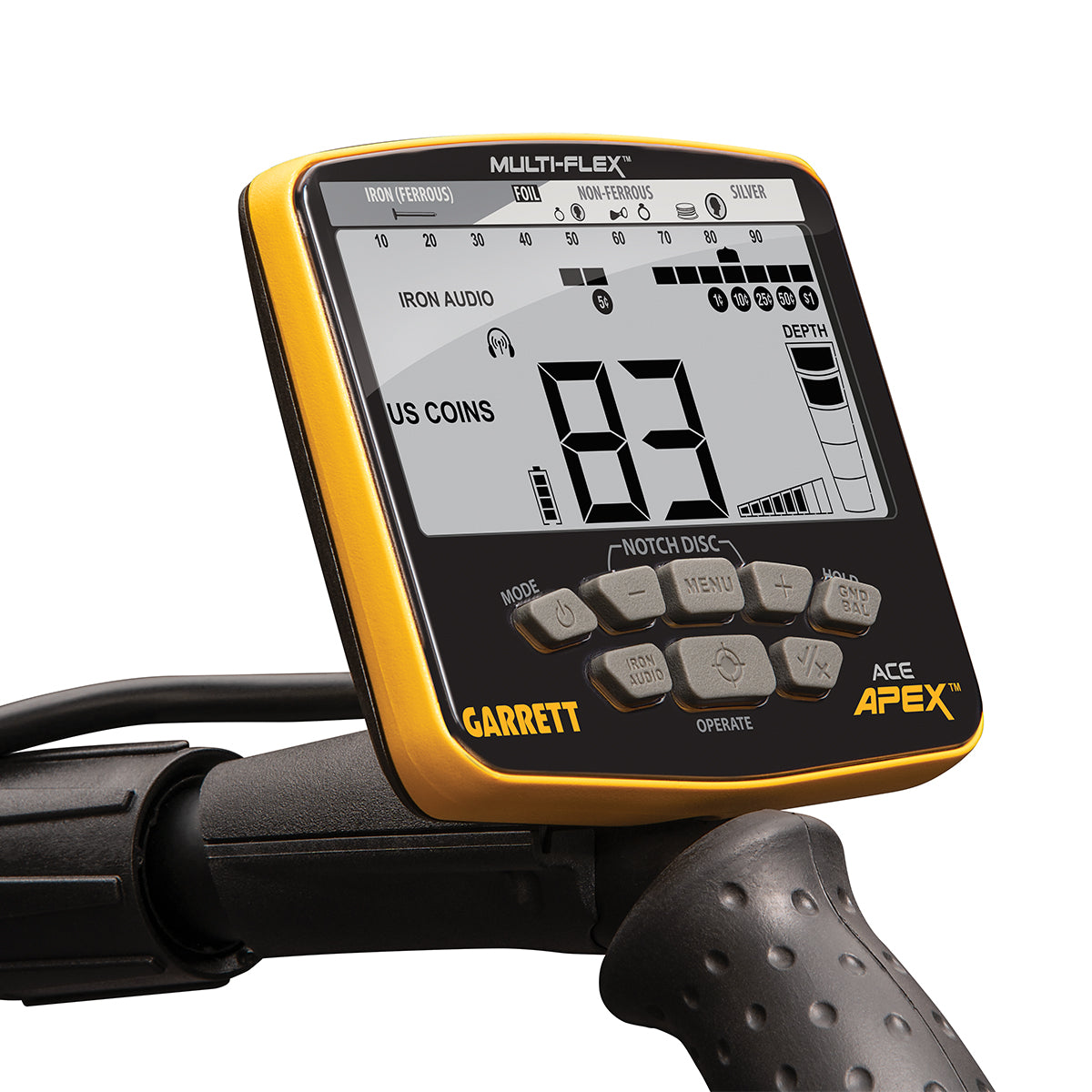

BACKLIT LCD
VOLUME CONTROL
For both the built-in speaker and headphones.
EIGHT SENSITIVITY/DEPTH ADJUSTMENTS
1/8” JACK for optional wired headphones
BUILT-IN Z-LYNK WIRELESS TECHNOLOGY
Up to 6 times faster than Bluetooth. Hunt without the cords!
UNLEASH THE VIPER!
Light weight. Broad coverage. Excellent target separation.

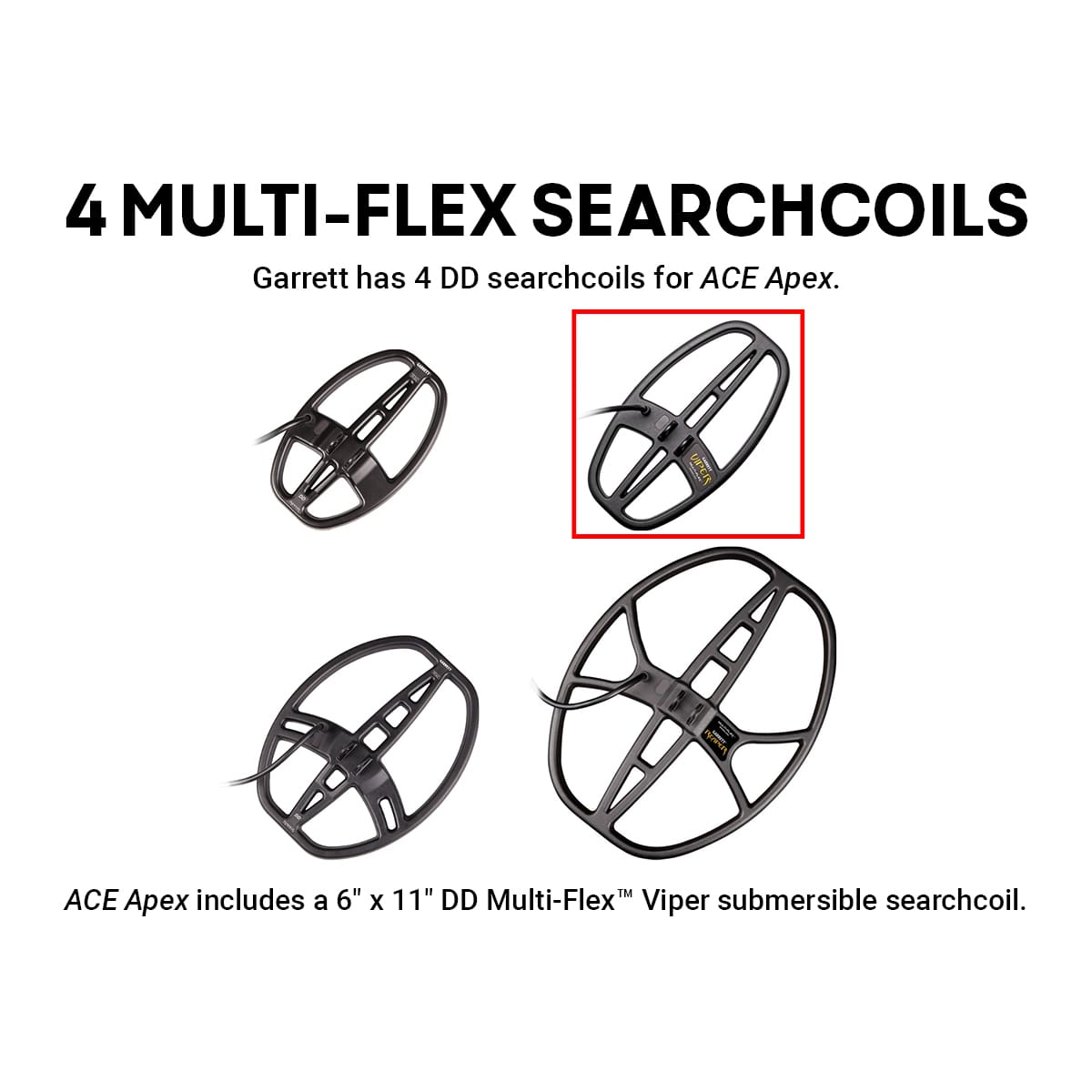

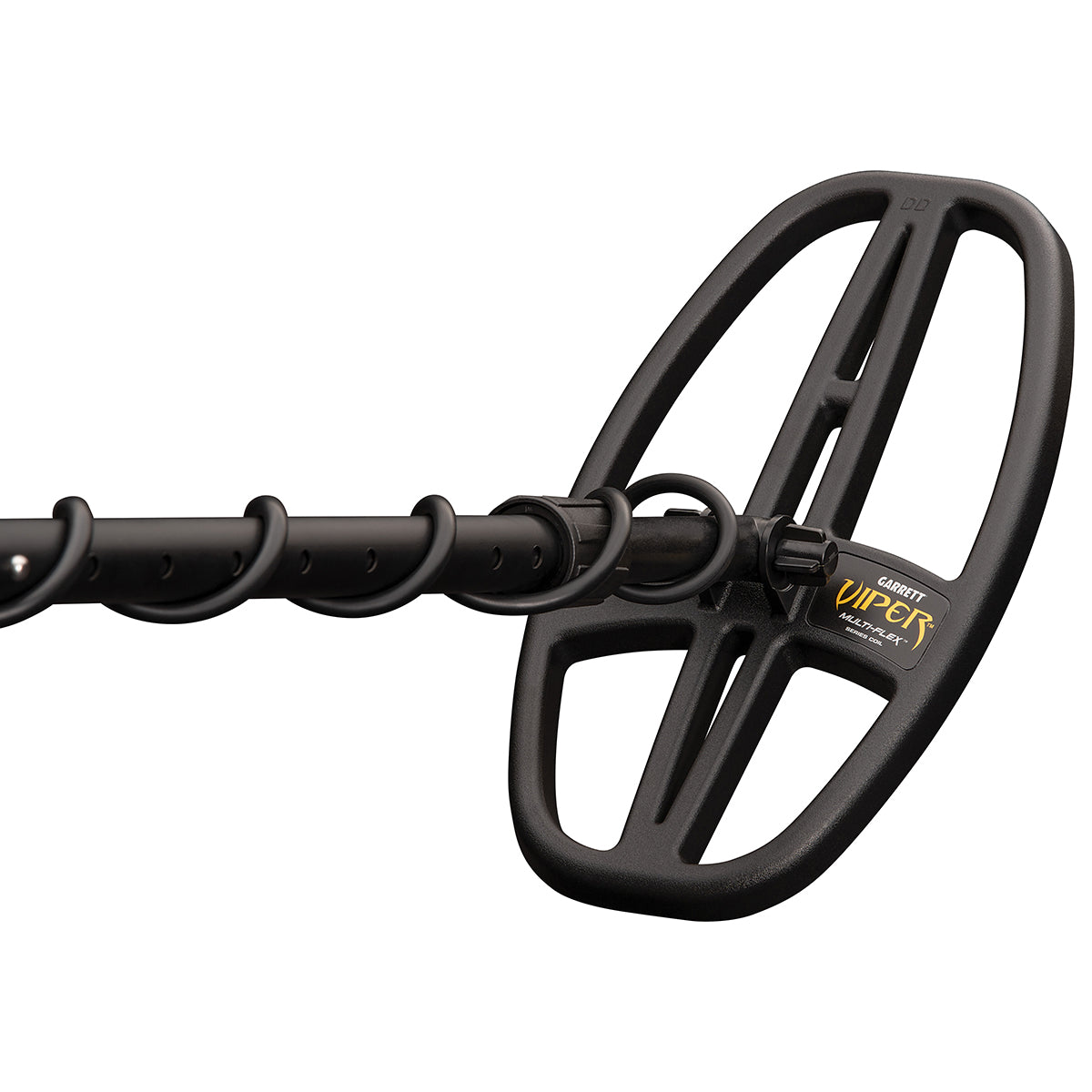

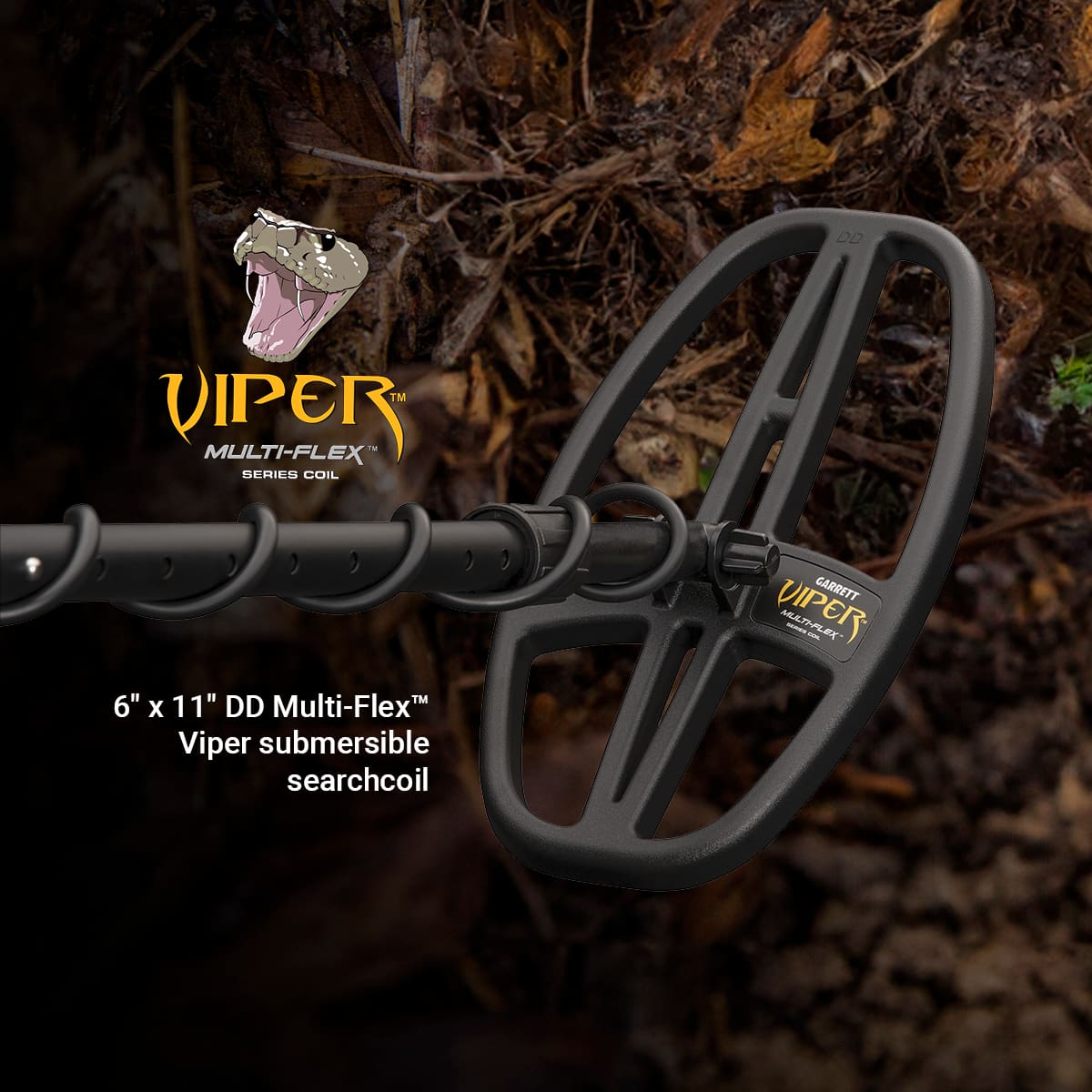

NEW 6" x 11" DD Viper Searchcoil
- Fully waterproof, the Viper is a blend of two of Garrett’s most popular DD coils.
- The 11" size is large enough to cover plowed fields, but its narrow 6" footprint allows easy separation of targets in iron-infested areas.
- The Viper is designed as a low-impedance, broad-bandwidth coil to support the new Apex Multi-Flex frequency technology.
Note: As a result of the Multi-Flex coil technology, the Apex Viper coil is not compatible with older ACE detectors. Prior ACE coils are not compatible with an Apex detector.
SPECIFICATIONS:
Multi-Flex™ Technology | ✓ | |
Single Frequency Options | 5, 10, 15 and 20 kHz | |
Multi-Frequency Options | Simultaneous MultiFreq. and Multi-Salt | |
Z-Lynk™ Wireless (integrated) | ✓ | |
MS-3 Wireless Headphones | Included | |
Fast Target Separation/Recovery | ✓ | |
1/8" Headphone jack | ✓ | |
Backlight | ✓ | |
Ground Balance, Auto | High Resolution, 175 pts | |
Iron Audio™ | ✓ | |
Iron Volume Control | ✓ | |
Iron Discrimination Segments | 8 | |
Volume Control (built-in) | ✓ | |
Pinpointing | ✓ | |
Water/Weather Resistance | ✓ | |
• Waterproof coil/stem | ✓ | |
• Rainproof control box | ✓ | |
Search Modes | 6, with International and US Coins modes | |
Large Digital Target ID | 0 to 99 scale | |
Audio Tone ID Levels | 5 tones included with hybrid binary and proportional audio system | |
Notch Discrimination | 20 selectable segments | |
Sensitivity/ Depth Adjustments | 8 | |
Target Depth Indicator | 2" / 5cm segments | |
Standard Searchcoil* | 6" x 11" DD Viper™ | |
Length (Adjustable) | 43" to 56" (1.09m - 1.4m) | |
Total Weight | 2.5 lbs (1.13kgs) | |
Battery Source | Rechargeable Lithium Ion, built-in | |
Battery Condition Indicator | ✓ | |
Warranty | 3 Year, Limited Parts/Labor |
*Note: As a result of the Multi-Flex coil technology, the Apex Viper coil is not compatible with older ACE detectors. Prior ACE coils are not compatible with an Apex detector.
